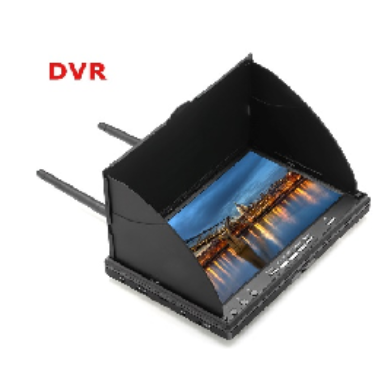

FPV 7-inch handheld screen
Category: Parts & Components
Model: 5802D
The FPV5802D is a receiving display device used for aerial photography and other scenarios. Item Name: LCD5802D Monitor Built-in 5.8Ghz Dual diversity receiver automatically for best reception Built-in 2CH 5.8Ghz AV output and 1CH AV input Built-in high performance Li-POLYMER Battery: 2000mAH/7.4V Work status OSD display : RSSI indication ; Battery indicator;Channel indication A key to automatic signal search Support Chinese and English menu Format: JPEG, AVI Screen size:7” Screen type:TFT LCD Screen/long life, LED backlight Resolution: 800*480 Brightness: 600cd/m2 View Angle:140/120degree (Horizontal/Vertical) Size:180mm x 120mm x 50mm(Note:Sunshield height:28mm) Working Voltage: DC 7~16V Power Consumption: max 650 mA @12V Battery charging current : 850mA @12V ( max ) Working temperature: -10℃~+ 65 ℃ Connectors:RP-SMA female(outer needle) Antennas Connectors:RP-SMA male (inner hole) Support up to 32G , C10 SD Card. Features: With DVR function Built-in Dual Receiver for best reception Dual buffered AV outputs Not affect by 2.4GHz R/C Radios AV Receiver with Diversity inputs Small, light weight, durable 5 Bands and total 40 Channels Built-in battery , easy to carry and outdoor use A key to automatic signal search,Simple operation Work status OSD display:Always be aware of the device working condition. Notice: It can't receive 2 different channels at the same time
