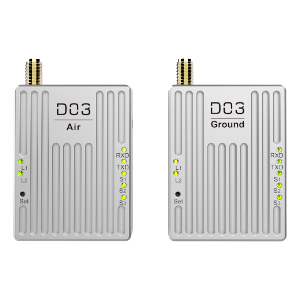

D03 VIDEO&DATA&RC LINK
Category: Flight controller with FPV system
Model: D03
D03 multi - link data transceiver is a high - performance data transmission device. It uses a military - grade data transceiver module and an integrated link design, specifically designed to meet the requirements of non - line - of - sight data transmission. Its body is small and lightweight, weighing only 43g (excluding the antenna), with dimensions of 53mm(L) x 40mm(W) x 14mm(H), making it suitable for installation scenarios with limited space. It features ultra - low latency, ultra - low power consumption, and strong anti - interference ability. The operating frequency is 820 - 845MHz (or P900 MHz, 902 - 928Mhz), and the power ranges from 100mW - 1W (20 - 30dBm). The air rate can reach up to 1000kbps, and it uses the TDM time - division multiplexing transmission method. It supports 1 - channel TTL (baud rate adjustable) serial communication, and also provides TTL/RS232 standard interfaces for transparent data transmission. It is also equipped with 1 - channel S - BUS remote control interface. The power supply voltage is DC7.4V - 12V (external voltage 7.4 - 24V, 2 - 6S battery), the transmission distance is 5 - 30km (ground - to - ground) or 30 - 60km (ground - to - air), and the encryption method is 128 - bit AES. The operating temperature range is - 10°C to + 60°C (working state - 10~+50℃), and the protection level is IP53. It is widely used in fields such as UAV status monitoring, mapping, pipeline detection, urban lighting monitoring, industrial automation, forest fire prevention monitoring, and electrical SCADA systems. It is also equipped with a parameter - tuning tool for users to modify the device's mode and parameters.
