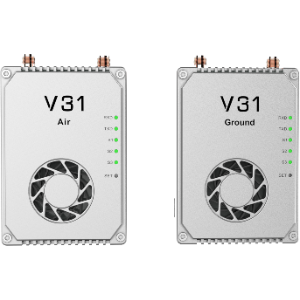

V31 VIDEO&DATA&RC LINK

V31 digital video transmitter is a device with high functional integration and excellent performance. It integrates functions such as image transmission, network protocol compatibility, and transparent data transmission, and has features such as multi-band selection and remote control range extension. It offers two frequency bands, 800MHz and 1.4GHz, to adapt to different environments, and supports TTL/RS232 level interfaces for convenient data interaction. The dual S-BUS input and output achieve remote control range extension, solving the problem of limited traditional remote control distance. The ground-to-ground transmission distance is 3 - 5 kilometers, and the ground-to-air transmission distance can reach 50 kilometers. By installing the E11 module, it can expand one network port and three serial ports to meet diverse interface requirements. Its total weight is 160g (excluding the antenna), the operating temperature range is from -20°C to +65°C, and the video delay is less than 300ms. It can provide reliable and efficient image and data transmission solutions for many fields such as aerial photography, search and rescue, and inspection and monitoring.
