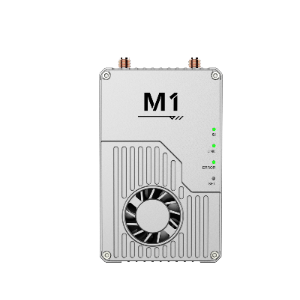

M1 4K VIDEO LINK

M1 is a broadband data transmission module that supports MESH networking. It adopts the LTE wireless communication standard and constructs an efficient wireless digital data link by virtue of OFDM and MIMO technologies. It integrates 10/100 Ethernet and serial gateway functions and can simultaneously transmit remote control signals, data transmission signals, and image signals. Its transmission rate reaches 100Mbps, supporting 32 nodes, and the bitstream can reach 100MBPS in CA mode. The operating frequencies are 600MHz (566 - 678MHz) and 1.4GHz (1427.9 - 1467.9MHz), with 1.4G being the standard factory configuration. It is exquisitely designed, compact, and highly integrated, suitable for multiple fields such as industry, military, and consumer electronics. The entire machine weighs 155g (excluding the antenna), with dimensions of 80mm * 56mm * 20mm. The external voltage is DC 9 - 50V, the operating current is 300mA (powered by 12V), the video delay is less than 300ms, and the transmission distance is 15 - 20km (varying depending on the environment).
