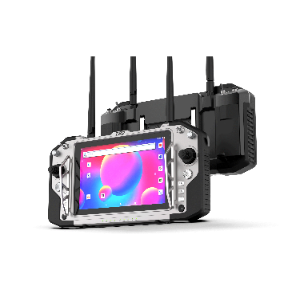

T20 Handheld Android Ground Station

The T20 Android Handheld Ground Station is a powerful and exquisitely designed device, specifically crafted for the control of unmanned systems. It runs on the Android 11/GMS operating system, is equipped with an MTK(5G-C) octa-core CPU, has 4GB of RAM and 64GB (128GB customizable) of storage. The device weighs 1800g, with dimensions of 378mm (L)×221mm (W)×54mm (H), and is equipped with an 8-inch 16:9 IPS screen with a brightness of 650. It supports Bluetooth, WIFI, 3G/4G/5G networks and has a rich variety of interfaces, including USB3.0, LAN ports, etc. In terms of remote control, it has 24 physically customizable channels, supports dual SBUS independent outputs, can control drones and their payloads simultaneously, and has a remote control delay of only 40ms. Its communication link performance is excellent. When the integrated V20 link is used, the ground-to-air (omnidirectional antenna at a flight altitude of 400 meters) range reaches 10km, and the ground-to-ground (omnidirectional antenna) range is 300 - 500M. When the external V31 link is used, the ground-to-air (omnidirectional antenna at a flight altitude of 400 meters) range can reach 20 - 80km, and the ground-to-ground (omnidirectional antenna) range is 3 - 5KM. Regarding the battery, it has a capacity of 7200mAh, a full charge can last 7.5 hours, supports hot-swappable replacement of 18650 batteries, and uses a Type-C charging interface. In addition, the device has a flexible design and can be equipped with a bracket. It is widely used in many fields such as aerial photography, logistics distribution, search and rescue, and is highly favored by enterprises and professional teams.
