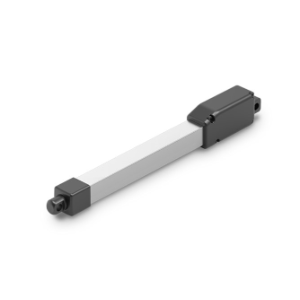

MOTECK MKS1

Input voltage: 12V DC Max. load: 80N (Push/Pull) Max. speed at no load: 19.0mm/s Stroke: 10 / 30 / 50 / 100mm Noise level: ≦55dB IP level: IP66/IP69K Options: MKS1-L version: With limit switches. When the actuator reaches the end of the stroke, the preset limit switch will cut off power and stop the motor automatically. MKS1-P version: With potentiometer positioning info, so that the controller can detect the stroke position of the actuator at any time. And it is an absolute position information, which will not deviate due to power failure.
