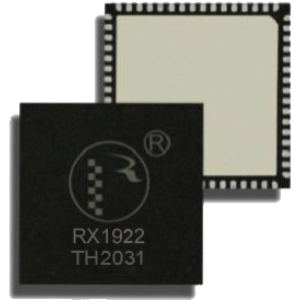

"RX1922 Qual-channel GNSS Array Anti-Jamming RFIC "

"Target Applications: Array Antennas, Phased Array Radar Receivers, Automotive Navigation Antennas L/S-Band Quad-Channel Anti-Jamming RF Chip 1.Integrated PLL (Phase-Locked Loop). 2.Supports cascaded multi-chip applications​ (for scalable array systems). 3.The analog IF output features a built-in 200 Ω differential output impedance; an external 4:1 balun​ can be used for 50 Ω impedance matching. 4.Supports ±50° phase tuning​ with a 1° phase step resolution. 5.Channel Isolation ≥ 60 dB. 6..Output Jitter​ of the 125 MHz sampling clock is < 1 pS. 7.Power consumption is approximately 2 W​ in quad-channel operation. 8.IF Output Frequency​ supports 20 MHz to 150 MHz. 9.Gain Range: 5 to 35 dB, with a 0.5 dB gain step. 10.OIP3 Performance: ≥ 39 dBm​ @ Pout = 0 dBm, Gain = 15 dB (B2/B3 bands). ≥ 36 dBm​ @ Pout = 0 dBm, Gain = 15 dB (S-band). 11.Package: QFN60 (7 mm × 7 mm × 0.8 mm)."
