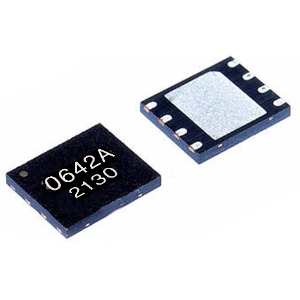

"RX7101Wideband High-Linearity LNA "

"Wideband, High-Linearity, Ultra-Low Noise Amplifier Fabricated using a pHEMT process, this amplifier features internally matched RF ports (50 Ω)​ and can be biased with a single positive supply voltage ranging from 3.3 V to 5 V. It integrates an internal enable switch, making it suitable for TDD (Time Division Duplexing)​ applications. 1.Operating Frequency Range: 0.6 GHz to 4.2 GHz 2.Typical Gain​ (@1.2 GHz, VDD = 5 V): 26.1 dB 3.Typical Noise Figure (NF)​ (@1.2 GHz, VDD = 5 V): 0.36 dB 4.Typical Output Third-Order Intercept Point (OIP3)​ (@1.2 GHz, VDD = 5 V): 35.2 dBm 5.Shutdown Pin: Compatible with 1.8 V TTL​ logic levels. 6.Unconditionally Stable​ across the operating frequency band. 7..Single Supply Operation: Supports 3.3 V to 5 V."
