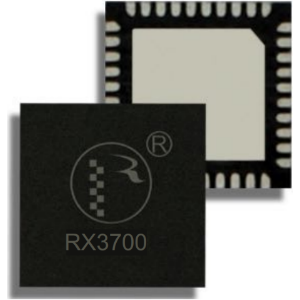

RX3700Dual-channel Wideband GNSS RFIC

"Dual-Channel Multi-Mode Multi-Band GNSS RF Chip 1.Dual channels, both covering the frequency range of 1.16 GHz to 1.65 GHz. 2.Supports Dual-Channel Direction Finding Mode. 3.IF (Intermediate Frequency) Bandwidth: Configurable in segments from 10 MHz to 60 MHz. 4.Sampling Clock Performance: 4 ps​ (RMS Jitter). 5.Noise Figure (NF): 3 dB @ AGC​ (Automatic Gain Control). 6.Power consumption in dual-channel operation is 81 mW. 7.Sampling clock frequency adjustable from 10 MHz to 150 MHz. 8.IQ Output: Analog/Digital (2-bit/4-bit) Intermediate Frequency output. 9.Package: QFN48 (5 mm × 5 mm)."
