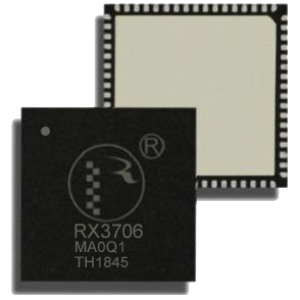

RX3706Quad-Channel Wideband GNSS RFIC
Category: Chip
Model: RX3706
"Quad-Channel Multi-Mode Multi-Band GNSS RF Chip 1.Four channels, all covering the frequency range of 1.16 GHz to 1.65 GHz. 2.Supports Multi-Channel Mode and Dual-Channel Direction Finding Mode. 3.IF (Intermediate Frequency) filter bandwidth selectable from ±400 kHz to ±40 MHz. 4.Power consumption in quad-channel operation is 370 mW. 5.Sampling clock frequency adjustable from 10 MHz to 150 MHz. 6.Package: QFN68 (7 mm × 7 mm)."
