UAV Meteorological Radar-Assisted Calibration System

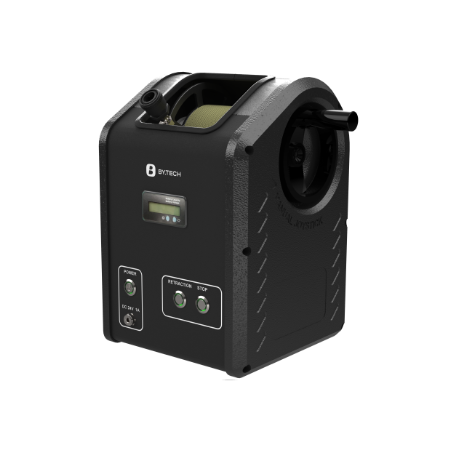

The UAV Meteorological Radar Calibration Assistance System – Ruler Mount QL10 is a specialized product designed to assist in meteorological radar calibration. As a key component for calibrating metal balls suspended from drones, the QL10 module ensures the safe and efficient storage of the cables used to suspend these metal balls. Its integration with the MT30’s cable retraction function enables seamless operation for drone-based metal ball calibration tasks. The metal balls are connected to the drone via long suspension ropes to ensure accurate radar echo detection. The QL10 allows for organized storage and release of the cables, preventing tangles that could disrupt the calibration process. This module operates in both manual and automatic modes, powered by a built-in battery without the need for external power sources. It is ideal for use in challenging calibration scenarios such as those in rural areas or high-altitude regions. Its self-swinging winding mechanism and automatic speed adjustment enable it to adapt to the drone’s flight conditions, ensuring a smooth, safe, and rapid cable management process. This reduces the workload required for manual operations and prevents interruptions due to improper cable handling, thus facilitating smooth progress during multiple calibration attempts. By combining the QL10 and MT30, an efficient calibration system that combines aerial operations with ground support is created. This approach effectively addresses the challenges associated with meteorological radar reflectivity factor calibration, promoting more efficient and intelligent calibration processes. Ultimately, this improves the accuracy and reliability of weather forecasting services.
