Flight Control MCU
Category: Chip

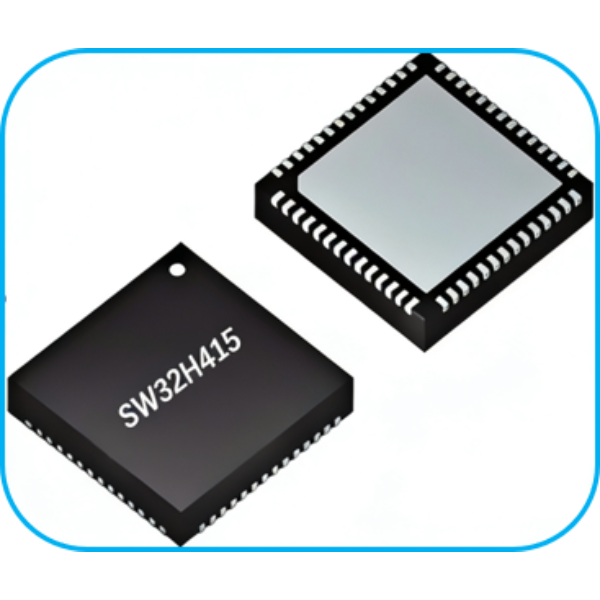

Model: SW32H415REU6
SW32H415REU6 is a high-performance general-purpose microcontroller featuring a dual-core architecture. It integrates a USB 2.0 high-speed/full-speed transceiver, Type-C/PD interface, DVP image peripheral, multiple analog peripherals and encryption modules.It supports a maximum clock frequency of 400 MHz, up to 8 UART channels, 2 QSPI channels and 4 SPI channels. The MCU embeds dual 12-bit ADC units with a sampling rate of 5 MSPS and a 10-bit high-speed HSADC unit supporting 20 MSPS.It is mainly applied to mid-to-high-end UAV flight control and multimedia industrial control. The operating temperature range is -40℃ to 85℃, packaged in QFN60 with dimensions of 6×6 mm.
