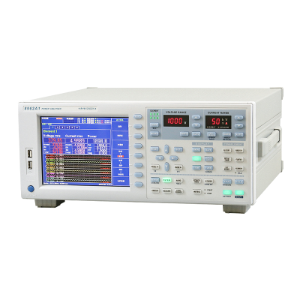

Power analyzer

1 to 6 channels freely configurable; supports expansion with dedicated motor interfaces; multiple modes and ranges available for flexible and customizable operation; Accuracy: ±(0.1% of reading + 0.05% of range); Features an FPGA + ARM processor with a 16-bit AD chip for simultaneous 6-channel voltage and current sampling; Bandwidth: 300 kHz and DC; sampling rate: 200 kS/s; data update interval is freely adjustable (50 ms, 100 ms, 200 ms, 500 ms, 1 s, 2 s, 5 s, 10 s, 20 s), with a minimum update cycle of 10 ms; Voltage range: up to 1000 V (optional 1500 V), current range: up to 50 A (optional 5 A); each with 8 selectable ranges for wider power measurement coverage; Supports external sensor input, enabling flexible extension of voltage and current measurement ranges; Built-in 1 GB internal storage; supports external USB storage devices for convenient data saving and transfer; Harmonic analysis from the 1st to the 500th order; optional inter-harmonic measurement function available; Multi-mode filtering: line filtering with adjustable cutoff frequencies at 1 kHz or 500 Hz–100 kHz; frequency filtering with selectable cutoff at 1 kHz or 10 Hz–50 kHz; 8-inch color touchscreen for intuitive and user-friendly operation; Rich communication interfaces: standard USB, RS485, RS232, and Ethernet port.
