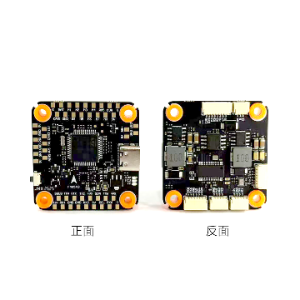

Flight Controller Board
Category: Flight controller with FPV system
Model: F405
- Flight control dimensions: 39.838.78mm - Net weight of flight controller: 10g - Mounting hole spacing: 30.5*30.5mm, p4mm - MCU: STM32F405RGT6 - IMU (Gyro): ICM42688P - Barometer: SPL06 - BEC: 5V/3A; 12V/2.5A - Storage: 16M - Input voltage: 3-8S - Firmware: JXFPVF405V3 - UART serial port: 6 - SBUS serial port: UART 3 - 6-Pin DJI Air Unit Plug - External device direct plug - Supported flight controller firmware: BetaFlight (Default), INAV, ArduPilot
