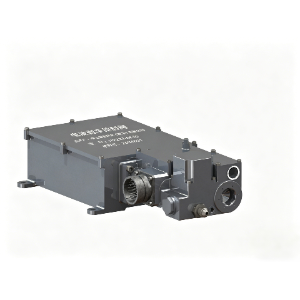

Electro-Hydraulic Brake Control Valve

Working Fluid: YH10 or YH15 Operating Ambient Temperature Range (℃): -55 ~ 85 Brake Pressure (MPa): 0–6, 0–10 or 0–20 Brake Pressure Control Mode: Continuously Adjustable Accuracy (%FS): ±2 or ±1 Power Supply (VDC): 18 ~ 36 Power (W): ≤ 200 Pressure Control Signal: PWM, RS422, RS485, CAN Single-Stroke Displacement (ml): 15 ~ 30 No-Load Response Time (ms) for 10%~90% Rated Pressure Signal: ≤ 60 Load Response Time (ms) for 10%~90% Rated Pressure Signal: ≤ 100 or ≤ 130 (Test Conditions: Brake chamber approx. 4 ml, hydraulic hose with inner diameter 3 mm, length approx. 1.5 m, ambient temperature) Weight (kg): 4.3 ~ 5
