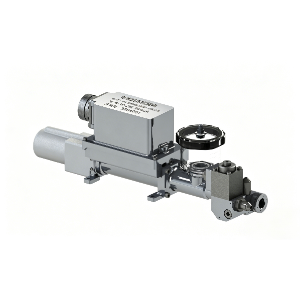

Electro-Hydraulic Brake Control Valve

Working fluid: YH10 or YH15 Operating ambient temperature (℃): -55 ~ 85 Brake pressure (MPa): 0–6 or 0–10 Brake pressure control mode: Continuously adjustable Accuracy (%FS): ±2 or ±1 Power supply (VDC): 18 ~ 36 Power (W): ≤ 50 Pressure control signal: PWM, RS422, RS485, CAN Single-stroke displacement (ml): 6 ~ 12 No-load response time (ms) for 10%~90% rated pressure signal: ≤ 100 Load response time (ms) for 10%~90% rated pressure signal: ≤ 200 or ≤ 260 (Test conditions: Brake chamber approx. 4 ml, hydraulic hose inner diameter 3 mm, length approx. 1.5 m, ambient temperature) Weight (kg): 1.3 ~ 2.2
