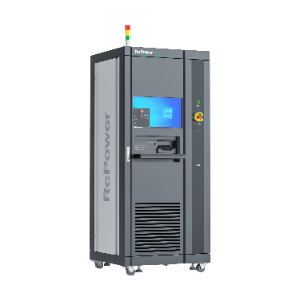

Power Battery Pack EOL Testing Solution

Application Field: Specifically designed for electric vehicles, buses, vertical takeoff and landing aircraft, and various energy storage systems’ battery modules/PACKs. The system integrates automated testing, data analysis, and efficiency optimization, providing a one-stop static testing solution covering production line inspection, quality control, and more. Testing Functions: Safety Tests: Insulation resistance testing, DC/AC high-voltage withstand testing, equipotential testing. Electrical Performance Tests: Total voltage, total internal resistance, single cell voltage difference, NTC accuracy, BMS power consumption. BMS Communication and Functional Tests: CAN/CANFD, RS485 communication, DBC parsing, UDS diagnostics, CAN terminal resistance. Signal Simulation Tests: PWM signal, collision signal, charging gun signal, high-voltage interlock simulation, insulation leakage simulation. Key Features and Advantages: The testing system complies with CE and UL certification standards, covering import requirements for most regions worldwide. Strong scalability of equipment, with the ability to add or remove functional modules based on specific battery testing requirements. Integrated with high-precision imported standard instruments, ensuring reliable and standardized test results. Excellent compatibility with modules, single casings, and PACK batteries, accommodating various testing needs. Intelligent and automated workflow, reducing operator involvement and improving testing efficiency. Software supports parsing of various BMS communication protocols with transparent parsing, without algorithmic processing. Proprietary open software platform supporting integration with different brands of instruments, maximizing customer needs. The system meets IP32 protection standards, suitable for complex usage environments. Compact footprint, equipped with rollers and foot cups for easy mobility and setup. Customizable development of testing functions and projects.
