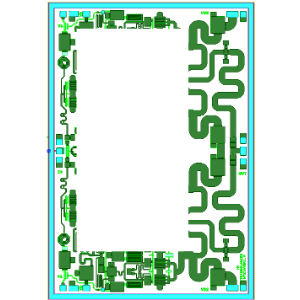

5~6GHz 100W GaN MMIC

The HYPA05000600P50P from Haoyi Technologiess a GaN-on-SiC Power Amplifier that operates from 5000 to 6000 MHz. It provides an output power of 50 dBm (100 W),PAE of 55% and has a power gain of 20 dB under 50V power supply. This amplifier is designed using GaN-on-SiC high-electron-mobility transistors (HEMT), providing high breakdown voltage, efficiency, and lower thermal dissipation. It has fully-matched input and output ports for broadband performance and supports improved thermal handling based on a patented technology.All specs are tested under Pulse Mode.
