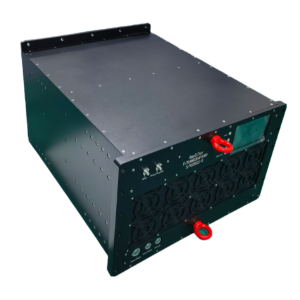

2~4GHz 1200W CW Solid State Power Amplifier

The SSPA02000400P58CW from Haoyi Technologies is a EMC Amplifier System with a frequency range of 2-4 GHz. The power amplifier adopts GaN MMIC technology and can work in CW/Pulse Mode. This amplifier system has a gain of 73.5-78.5 dB and a saturated output power of 62 dBm. The amplifier system has a spurious of -60 dBc and harmonica surpression of 11dBc. It requires a power supply of 380 VAC and has a power consumption of 4.5-6 kW. Forcing air-cooling system was bulit in. The amplifier system features a modular architecture. It weighs 48.3 Kg (RF unit) and measures 482.6x 560 x 310 mm (W x H x D).
