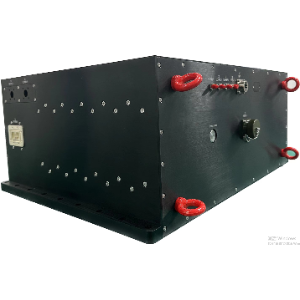

4~8GHz 2000W CW Solid State Power Amplifier

The SSPA04000800P63CW from Haoyi Technologies is a EMC Amplifier System with a frequency range of 4-8 GHz. The power amplifier adopts GaN MMIC technology and can work in CW/Pulse Mode. This amplifier system has a gain of 75-81 dB and a saturated output power of 63 dBm. The amplifier system has a spurious of -60 dBc and harmonica surpression of 12dBc. It requires a power supply of 500 VDC and has a power consumption of 7~9.5 kW. Forcing air-cooling system was bulit in. The amplifier system features a modular architecture. It weighs 255 Kg (RF unit) and measures 1000 x1000 x 325 mm (W x H x D).
