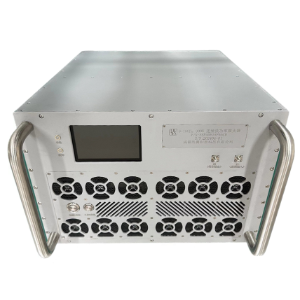

6~18GHz 300W CW Solid State Power Amplifier

The SSPA06001800P55CW from Haoyi Technologies is a EMC Amplifier System with a frequency range of 6-18 GHz. The power amplifier adopts GaN MMIC technology and can work in CW/Pulse Mode. This amplifier system has a gain of 73-77 dB and a saturated output power of 55 dBm. The amplifier system has a spurious of -60 dBc and harmonica surpression of 20dBc. It requires a power supply of 180-264 VAC and has a power consumption of 2.5-3.4 kW. Forcing air-cooling system was bulit in. The amplifier system features a modular architecture. It weighs 48.3 Kg (RF unit) and measures 440 x 500 x 300 mm (W x H x D).
