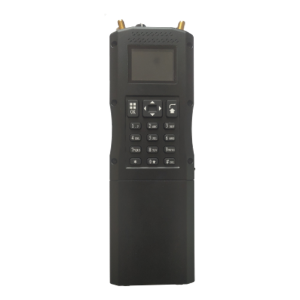

3rd-Gen Handheld Ad Hoc Network Radio iMESH-SDR-A1
Category: Flight controller with FPV system,Parts & Components,Materials
Model: 三代iMESH-SDR-A1
Product Specification Product Name: 3rd Generation iMESH-SDR-A1 Handheld Radio Frequency Band: 1.4 GHz & 500–680 MHz (S-band customizable) Power Output: 2W & 4W Unit Weight: 980 g Bandwidth: 2.5 / 5 / 10 MHz (20 MHz customizable) Data Rate: 65 Mbps @ 10 MHz (Standard Version) 125 Mbps @ 20 MHz (High-end Version) Networking Capacity: ≥ 64 nodes; Multi-hop: ≥ 32 hops Key Features: Rotary knob switch, side audio or expansion port Display: 1.8-inch HD screen, real-time status display Keypad: Physical keys supported for quick parameter configuration
