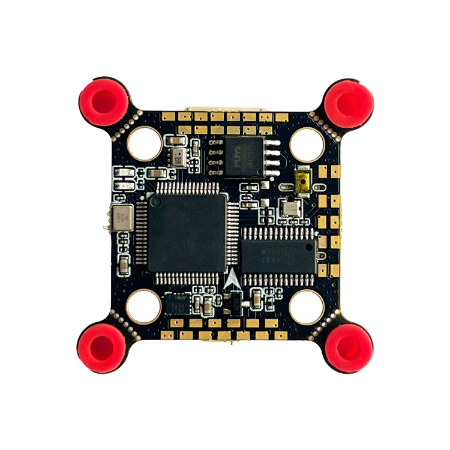

XJSF MINI F405 Flight Controller
Category: Flight controller with FPV system
Model: MINI F405
Technical Specifications Mounting Hole Spacing: 30.5*30.5mm & 20*20mm (Ø4mm) Weight: 8g Main Processor: SFLY32F405RGT6 Gyroscope: IIM-42652 Barometer: SPA06 Black Box Storage: 4MB OSD: AT7456E Motor Channels: 8 groups DJI Air Unit Direct Plug-in: Supported Analog VTX Direct Plug-in: Supported Number of Serial Ports: 5 groups ESC Telemetry Input: Supported (UART3 RX) I2C: Supported LED Pads: Supported Buzzer Pads: Supported RSSI Signal Output: Supported Firmware Type: Betaflight Firmware Name: XF_F405_V1.0.1 Type-C Interface: 1 Remote Control Signal: SBUS/CRSF VTX OSD: Built-in VTX OSD module Supported ESC Protocols: PWM / Bidirectional DShot / OneShot Power Input: 2S-6S BEC: 5V/3A 12V BEC Switch: Supported Operating Temperature: -35~85℃ Supported Platforms: 2-6 axis multi-rotor, fixed-wing, helicopter, car, boat, robot, lawn mower, bait boat, etc.
