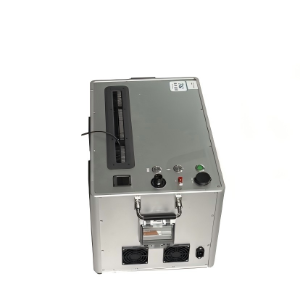

Ground Power StationNG7(220S750,25kg)

AF-NG7-100M UAV tethering box can be matched with airborne modules to form a tethered system that can be adapted to multiple UAV platforms The tethered mainly includes: retracting winch, tethered box, and integrating tethered cables and integrating tethered ground power supply, mainly providing wired power supply, information transmission and cable retraction and release functions for tethered UAVs, and the retracting and unwinding winch mainly includes the system box, main frame, cable storage tray and control circuit. System box body size: 550mm×480mm×350mm (length, width and height) Housing material: aluminum alloy Cable length: 100 Weight: 25kg±0.5kg External power supply: 220Vac Maximum take-up speed: ≤2m/s Working mode: Passive pay-off/automatic take-up (can be manual) Output Voltage: 750Vdc/400Vdc (35V Compensation)
