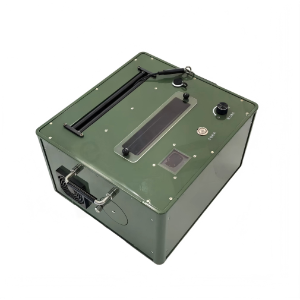

Airborne Module AF-DG4(220S800,14kg)

The AF-DG4 tethered UAV portable automatic retraction and unwinding system mainly includes: retracting and unwinding winch, tethered box, and integrating tethered cables and integrated tethered ground power supply, mainly providing wired power supply, information transmission and cable retraction and release functions for tethered UAVs. System box body size: 382mm, 352mm, 226mm (length, width and height) System box with handle Control panel size: 450mm352mm240mm (length, width and height) Length of a single cable: 110m Weight: 14.5kg±0.1kg External power supply: AC220V Maximum take-up speed: not less than 2m/s Working mode: passive pay-off/active take-up Power supply output voltage: DC800V Power Output Max. Power: 4500W
